1000-1500BPH 500M auto juice line
Water treat system
Summary
This machine is made of stainless steel as a small tank which contains sand filter, it only allows un-treated water go through the sand filter, and do not allow any liquid go through another part, so it can filter the un-treated water. It also can be used in petroleum industry, pharmacy industry, wine making industry, beverage industry and higher quality water industry.
Main technical parameter
(1). Model: SYS-2
(2). working pressure: ≤0.3Mpa
(3). Flux: 2T/h
(4). quantity of filter material: Silica sand
Structure and characteristic
This sand filter device is equipped with filter, filter’s cap, and filter device parts, through tight the screw to pressurize, it can forms clean and dirty parts separately, you have to take care of the airproof on sealing part as you are installing the equipment.
This machine is designed and made after absorbing the advices from clients and customers, which has changed the directions of water-taking in and sewerage-taking out to be more efficient on water purifying. It has been welcome by the clients worldwide. This equipment is the last one for living water treatment. The water with chaotic degree maximum 5mg/L will be clear, transparent, innocuous, drinkable, axenic, sugary and according with the national standard for drinking water testing
This equipment can wipe off the peculiar smell, strange color and some heavy metal like hg, pb, cadmium, zinc, Fe, Mn, chrome, etc. contained in the water. It can also get rid of arsenic, hydride, redundant chlorine and other macromolecule compound and radioactivity substances as Sr and Ra. Bacteria, coliform and other carcinogen existed in the water will also be killed and wiped off. It is the ideal water supply equipment in various fields including living drinking, foodstuff making, pharmacy and chemistry.
This water purifier is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army, station and dock. All in all, it is a really good water supply device for both industry and living.
Main technical parameter
(1) Model: HYT-2
(2) Working capacity: 2T/H
(3) Filtering volume: 2T
(4) Working pressure: 0.25MPa
(5) Chaotic degree: maximum 5mg/L
(6) Water quality after treatment: need to be accorded with GB5749-85 national standard for living drinking water
(7)Filter medium: active carbon
Soften:
(1)Soften theory: Exchanging Na++ of resin itself instead of Ca++Mg++ of water resource with
Ion to make water resource soften and become soft water.
(2)The water resource which comes in the barrel exchanging resin and exchanging react with
The ion in the barrel, Ion exchanging Na++ of the resin instead of Ca++Ma++ water resource to decrease the Ca++Ma++ of the water, the water quality becomes soft water from hard water.
Regeneration:
(1) Regeneration theory: Using Na+ of salt solution permutate Ca++Mg++ of invalidity resin
To make resin restore soften ability.
(2)Regeneration preparation: After 24—25KG salt dissolve completely in I dissolved tank
And put it totally into II tank, and then dilute to thickess is 5% salt solution with water. Then
dilute thickness is 10% salt solution with 24—25KG salt in I tank.
Disposal water volume: 1ton/hour—-2ton/hour
Input water hardness: <4miligram/liter
Output water hardness: <0.035miligram/liter
Working pressure: 3kilogram/cm2
Testing pressure: 4.5kilogram/cm2
Working periods:48—-50hours
Ion-exchanging agent: 732resin(or sulfurted coal)
Soft water periods production capacity: 96ton/periods—–100ton/periods
The following picture from left to right, they are: pump, sand filter, active carbon filter, Sodium ion exchanger

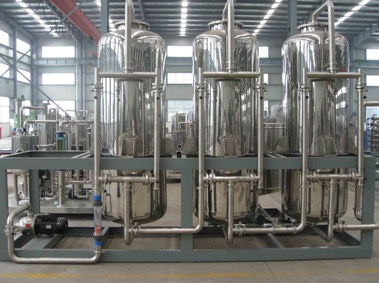

The following picture, from right to left, they are sand filter, active carbon filter, Sodium ion exchanger
This machine is made of stainless steel as a small tank which contains precision filter membrane, it only allows un-treated water go through the membrane, and does not allow any liquid go through another part, so it can filter the un-treated water. It also can be used in petroleum industry, pharmacy industry, wine making industry, beverage industry and higher quality water industry.
Main technical parameter
(1). Model: JM-2
(2). working pressure: ≤0.3Mpa
(3). Flux: 2T/h
(4). Filter medium: PP ,0.22micron
(5) Material: stainless steel 304
Structure and characteristic
This Precision filter is an advanced settled deep filter widely used with foldaway polypropylene. It is totally made from pure polypropylene for it’s structure. The medium of filtering core adopts hot-melting fiber membrane made from polypropylene. This product has comprehensive chemic adaptability without using surface active type felting solvent. The scale of precision filtering is from 0.10mm to 60mm. The precision of the membrane won’t be affected by the pressure caused by the taking-in water.
The device’s key part: the reverse osmosis membranes is from the America HYDRANAUTICS company, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the case that the conductivity is less than 300us/CM, can reach the national standards totally after treatment by this device, it’s the most ideal equipment for water treatment.
Main technical parameter:
Model: RO-1
Production Capacity: 1CBM/h Working Pressure: 3Mpa, 1stage
This equipment are body device of closed cases. Owned tube in common and disinfected , electric apparatus was controlled, three major parts of case body were assembled .
Disinfect tube adopts high-quality stainless steel make , the material mere to with high efficiency to can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container that pigeonhole while bearing while being whole of, barrel have enter water mouth and water outlet, it is stainless steel that is it connect both ends is it seal one and is it stamp flange to pigeonhole to have to in charge of.
Main technical parameter
| Type | Total power | Flow of Sterilization Water l/h |
Working Pressure ㎏/㎡ |
Pass in and out the diameter of the water pipe mm |
Working Voltage |
Steady Time |
The life-span of the light tube H |
| DK-34 | 120W | 6000 | ≤4 | Dg25 | 220 V | 3-6M | 6000 |
Capacity：1T
Blending system
Material: SUS 304, capacity: 100L
Material: SUS 304,
Inlet and outlet 0.8mm and 1mm mash SS net
Homogenizer
Structure characteristics:
The equipment consists of a frame, a transmission box, a pump body, a pressure gauge, a homogenizer and other components. The machine is a vertical arrangement, and the motor is installed in the frame,
The transmission box is mounted on the frame, and the pump body is connected with the transmission case. An electric motor, a belt, a transmission case, a gear shaft, a crankshaft, and a crankshaft drive
The moving plunger acts as a reciprocating motion. The movement of the plunger in the pump creates suction and compression, and by combining the valve to control the fluid, the pressure is formed. This machine is made homogeneous
When in use, the homogenizer shall be assembled, when the liquid is pressed into the homogenizer, and the homogenized liquid is homogenized and refined by the special homogeneous valve in the homogenizer
The texture of a molecular mass or material.
This machine makes use of high-pressure pump, pressure relief device shall be fitted, at this time, the material liquid through the pump body, is pressed into the outlet, when the pressure exceeds the set range, the relief valve opens automatically formed inside the vent, the pressure is lower than the set value, the relief valve is automatically closed, so that the liquid in the setting of safety delivery pressure range.
Material: SUS 304 other details:
Filling system

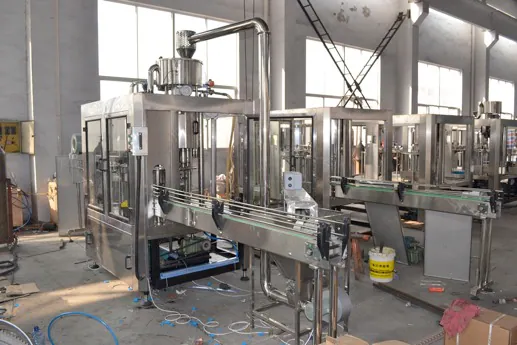

1. 3 in 1 filling machine
MAIN TECHNICAL PARAMETERS
1. Equipment type: RCGF883
2. Quantities of service position of the washing machine: 8
3. Quantities of service position of the filling juice machine: 8
4. Quantities of service position of the capping machine: 3
5. Bottle material： PP bottle
6. Bottle height：120-360mm
7. Bottleneck diameter：φ50-φ120mm
8. Consumption water：0.8-1.0 M3/hour
9. Washing water pressure：0.2～0.25MPa
10. The capacity： 2000BPH for 500ml
11. Power: 3.5KW
Main configuration for 3 in 1 filling machine:
1) Material of rinse and rotary plate, machine table is stainless steel 304.
2) Touch screen：DIGITAL
3) PLC：OMRON/ MITSUBISH
4) Photocell switch and proximity switch：AUTONICS (South Korea)
5) Main Pneumatic components：AIRTAC
Packing system
1. Automatic shrink sleeve labeling machine
Auto shrink labelling machine will carry bottle, separate bottle, sleeve label and shrink label together which is with high speed, accurate position, fewer worker and perfect packing. Our machine can be applied to the packing of beverage, condiment, cosmetic, etc.
Driving unit:
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.
Cutter head unit:
1. The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm.Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
2. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
Label feeding unit:
Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.
Clean down unit:
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
Bottle carrying system:
Adopted with mechanical transmission to drive the positioning belt on both sides.While changing the whole bottle carrying unit, the down and up, width are all controlled by one handwheel aiming to synchronously and swiftly adjust.
Machine head up and down unit:
It adopts motor to up and down which enable the operation more convenient.
New steam shrinking tunnel:
The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient. The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them and working environment cannot be influenced. There are two eye window in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.
New hot air shrinking tunnel: It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful. Compare with the traditional shrinking tunnel, this kind of tunnel can do better for curved bottle.
