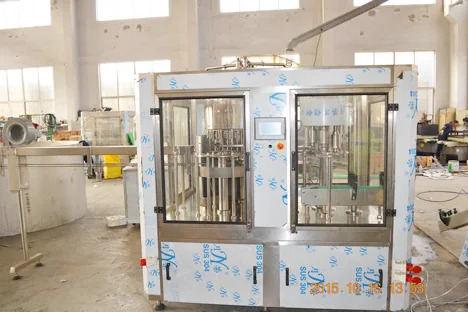

3 in 1 filling machine
1, This machine is suitable for the filling of cooking oil;
2, This machine works stable, fills precisely, and easy washing by CIP and easy for changing different bottle size. It is equipped with three point liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottles and no filling without bottles… It adopts with good stainless steel material, which meets the requirement of food sanitation, nice appearance.
This machine is reliable in design, compact in structure, additional with protection cover.
Its main characteristics are as following:
Compact structure; complete controlling system, convenient operation and high automatization;
Parts connect with material are all made of good stainless steel, bear rust and easy cleaning.
3, Adopt with pressure filling, it is easy for you change different bottle shape.
4, The filling amount adjustment adopts with round guiding orbit. The gradient adjustment of round guiding orbit is convenient, which works stable and no impact.
5, The cap spinning head is adopted with constant wrest moment magnetism device, which ensures the quality of cap spinning and no damage to caps.
6, Adopts with high effect cap ordering system and complete cap feeding and protection device.
7, With perfect over loading protection device, it can protect the machine and operator effectively.
8, With frequency conversion timing motor, this machine can do proper adjustment to its production capacity.
9, It is equipped with eliminating structure for reverse caps and alarm system when no caps.
10, Has three points liquid level control function.
11, Has the function of filling with bottles and no filling without bottles.
12, it with oil recycle system. It can collect the oil, which is on the machine table, and through filter, you can decide how to use this oil.
13, The electric system is the combine operation of text display and button, easy to operate.
2, Technical Data:
Filling nozzles: 40
Capping heads: 8
Filling Volume:1000ml & 2000ml
Applicable viscosity: under 8,000 cps
Power Source: according to requirement.
Filling Speed:4000b/h(1000ml)

Auto Shrink sleeve labeling machine
Auto shrink labelling machine will carry bottle, separate bottle, sleeve label and shrink label together which is with high speed, accurate position, fewer worker and perfect packing. Our machine can be applied to the packing of beverage, condiment, cosmetic, etc.
Driving unit:
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.
Cutter head unit:
1. The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm.Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
2. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
Label feeding unit:
Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.
Clean down unit:
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
Bottle carrying system:
Adopted with mechanical transmission to drive the positioning belt on both sides.While changing the whole bottle carrying unit, the down and up, width are all controlled by one handwheel aiming to synchronously and swiftly adjust.
Machine head up and down unit:
It adopts motor to up and down which enable the operation more convenient.
New steam shrinking tunnel:
The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient. The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them and working environment cannot be influenced. There are two eye window in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.
New hot air shrinking tunnel: It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful. Compare with the traditional shrinking tunnel, this kind of tunnel can do better for curved bottle.
