MAX 300BPH 3 & 4 gallon filling line
Equipments detailed list for whole line
This type of de-capper machine is special used for 3 gallon and 4 gallon water filling line. (adjustable for 3 Gallon and 4 gallon ). Main machine applies super stainless steel, which is anti-rust and easy to clean. Main electrical components applies SIEMENS, and Mitsubishi, pneumatic components applies AIRTAC. This machine has merit of compact structure, and stable running, high automation.
2 Main technical parameter
1. De-capper head: 1
2. Diameter of barrel: φ276×490
3. Capacity: 300 b/h
4. Air souce: Pressure 0.6-0.8Mpa,
5. Air consumption:200L/min
6. Structure: Cylinder
7. Weight: about 0.8T

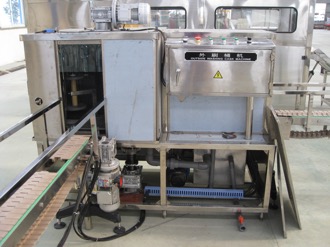

Barrels are transferred by conveyor belt and enter into Automatic outside Brushing Machine. The barrels reverse rotation with inlet direction and rotary bottom brush direction. Barrels finish running one circle of revolution and four circles of rotation via thumb wheel. Rinsing pump continuously spray water or cleaning agent to each brush. There is collecting water pan bellows machine which can collect water and make water flow into cleaning agent case thus to recycle used. Barrels will enter into shower room after 270°revolution in Automatic outside Brushing Machine and then output by conveyor belt. The water of shower room or cleaning agent is from the same rinsing water pump, and been collected by collecting water pan and flow into the same cleaning case then recycle used.
Main technical parameter:
Main pneumatic components apply AIRTAC products.
AC electromagnetic contactor applies SIEMENSE or Schneider brand.
Conveyor belt applies stainless steel.
The machine applies 304 stainless steel or 316 stainless steel.
There is water proof structure in the place of rotary bearing.
Adjustable speed motor for brush:0.75kw
Adjustable speed motor for thumb wheel:0.75kw
Rinsing water pump:0.37kw
Conveyor belt:0.27x3kw
Overall dimension: 1850x1100x2200
Weight: about 1 T
1. Summary

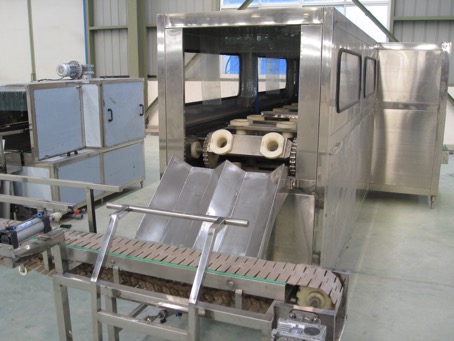

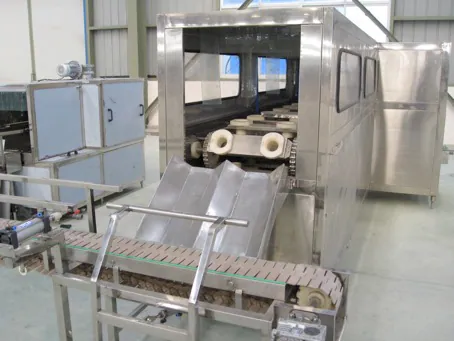

QGF-200/300 is an automatic barrel production line for drinking water of 3-5gallon. This machine includes washer, filler and capper three functions in one body. It is optimal equipment production line for mineral water, stilled water and purifier water. This machine is adopted stainless steel; it is anti-rust, and easy to clean. Main electrical parts are adopted SIEMENS, OMRON ‘s products, air-way system is adopted importing AIRTCA brand. This machine has concise structure, higher work productivity, and high automation. The machine needs two operators; it is automatic barrel production equipments
2. Main Technical Parameter
(1). Filling Heads: 2 Heads
(2). Filling Volume 3 & 4 Gallon
(3). Size of Barrel Φ276X370mm, Φ276X490mm
(4). Production Capacity 200-300barrels/hour
(5). Power: 380V, 50HZ, Total power: 4.5Kw.
(6). Volume of using water Mineral water or purified water 5.5Tons/hour, (4.5Tons/hour for filling, 0.5tons/hour for rinsing, 0.5Tons/hour for tap running water)
(7). Air resources
Pressure: 0.45-0.6Mpa, air usage volume: 120L/M
(8). Overall dimension
Long 4060X wide 1860 X high 1600mm
(9). Total weight
About 1.2Tons
With: MITSUBISHI PLC controller, pneumatic component AIRTAC, main electrical components is Mitsubishi, Water pump brand is CNP
Automatic barrel feeding machine
De-capping, inside and outside washing 3-in-1 machine
Installation, debug, training, after sales
（One.）installation, debug
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.
（Two.）training
Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
(Three.) Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
（Four.）After sales
1、after checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
2、after quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
